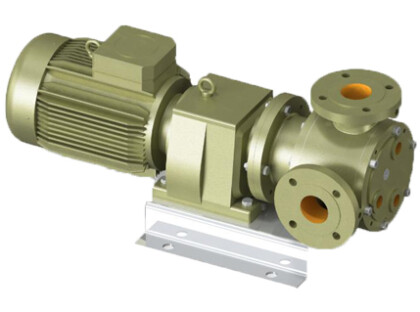

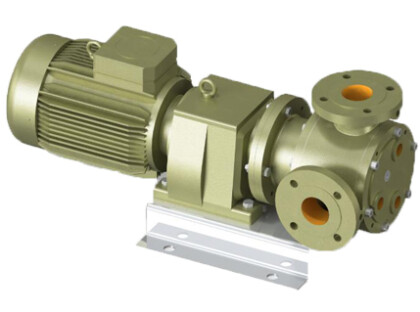

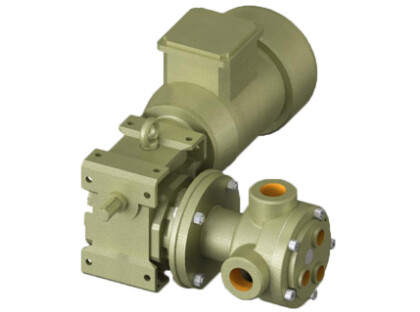

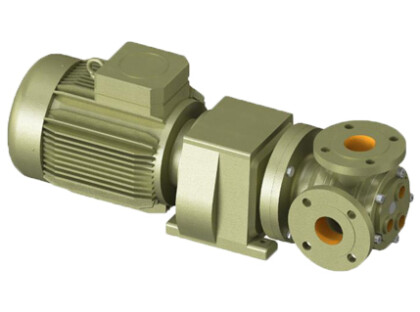

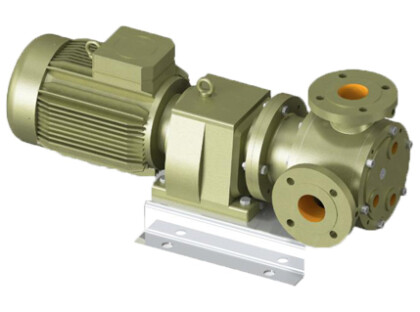

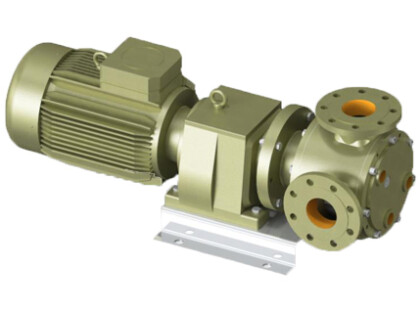

Yildiz YC Food Grade Internal Eccentric Gear Pump

Food Processing Pump & Edible Oil Pump

Key Specifications
Max Flow Rate 116lpm
Max Head 50M
Max Temperature 70°C
Max Viscosity 55,000 cP
Solids 0mm
Sizes 1" to 2 1/2"
Datasheet
Download this file
Enquire now

The GV range of Internal Eccentric Gear Pumps has been designed to pump low to high viscosity fluids with lubricating properties. This set of sanitary gear pumps are food grade and are therefore designed for use within hygienic applications, such as food processing. These internal gear pumps come both with and without an external bypass relief valve, with the option of also having an external heating jacket to retain the temperature of the pumped medium. With tight clearance between the gears, these eccentric gear pumps are not designed for fluids containing abrasive particles. The most common applications of this food processing pump include lubricating liquids such as edible oils, cream, glucose, vegetable oil and more.

Features of the YC Food Grade Gear Pump:

  • Internal eccentric gear pump
  • Food safe pump model for hygienic food processing installations
  • Designed for low pressure applications
  • Compact design
  • Reliable construction thanks to only two moving parts
  • Various material options
  • Available with jacketed cover and blind cover
  • 230v, three phase 50/60hz motors available
  • Manufactured according to CE regulations

For more information on how internal gear pumps are designed and operate, read here.

Material options for the GV food grade sanitary gear pump:

CAST
IRON		CAST
IRON		STEEL
CAST		STAINLESS AISI
304/316 CAST		SPHEROIDAL
CAST IRON		SNBZ 12
BRONZE		CARBON
GRAPHITE		SLICON
CARBIDE		HARD METAL
COATED STEEL		LIP SEAL
PUMP BODY & COVERSXxx
GEARSxxxx
BEARINGS

xxxx
SEALING
x

FAQs

Gear pumps operate by an unchanging volume of fluid passing between the teeth of two meshing gears and their casing at a constant rate (not between the gears themselves). As the gears rotate and the meshed teeth separate, a partial vacuum is formed that fills with fluid, which they trap and move it around the casing from the suction to the discharge point.

The pumping of high viscosity lubricating fluids such as oils, fuels, paints, soaps and resins. The pumping of low viscosity fluids should be avoided as they can cause fluid to leak backwards or "slip" back to the suction side.

An internal gear pump operates a "gear within a gear" principle, whereby one gear (the idler) is positioned inside another gear (the rotor).

Whilst external gear pumps offer higher pressure and flow rates, internal gear pumps generally have better suction capabilities and are able to handle higher temperature, higher viscosity fluids. Internal gear pumps slower speeds and larger clearances also makes them more suitable for shear sensitive fluids

Yes. Gear pumps have excellent self-priming capabilities thanks to their rotating gears evacuating any air in the suction line, and forcing the liquid into the pump inlet.

The close tolerances between the gears and casing mean that pumping solids will result in wear and damage. Some internal gear pump designs which have less tight tolerances and slower speeds however may be able to tolerate small solids.
