How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

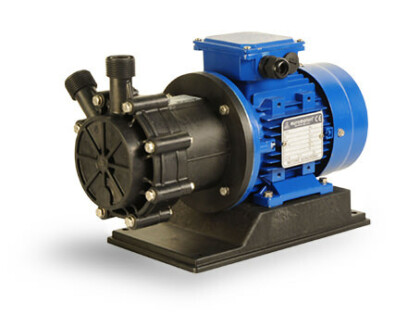

Gemmecotti HTT Regenerative Turbine Magnetic Drive Pump

Chemical Pump & Corrosive Liquid Pump

Key Specifications
Max Flow Rate	150lpm
Max Head	50M
Max Temperature	90°C
Max Viscosity	40 cP
Solids	0mm
Size	1” to 1 1/2”

Datasheet

Enquire now about this product

The Gemmecotti HTT Series Regenerative Turbine Magnetic Drive Pump is a thermoplastic magnetically coupled pump constructed in either PP or PVDF as standard. This range of magnetically coupled pumps has a high chemical resistance and is designed to pump highly corrosive liquids, and fluids containing up to 20% entrained gas. Thanks to the innovative design of the Gemmecotti magnetic drive pumps, there is no direct connection between the electric motor shaft and the impeller, meaning no wearing mechanical seals are needed, and the risk of leaking is eliminated.

The sealing of this mag drive pump series is maintained by a magnetic coupling, which removes the need for a mechanical seal and ensures safety by eradicating the risk of any corrosive fluids leaking from the pump. Suitable for pumping clean, solid-free fluids and chemicals, the HTT magnetic drive turbine pump benefits from a smooth operation, less noise and wear. The Gemmecotti HTT mag drive pump has a simple structure that requires low maintenance, saving time and money on pump repairs and spare part costs during the pump life.

Features of the HTT Mag Drive Pump:

Thermoplastic magnetic coupling pump
Suitable for highly corrosive liquids and up to 20% entrained gases
High torque magnetic coupling as standard
Static shaft in high purity ceramic
Chemical resistant PTFE/carbon sleeve bearings
Low maintenance costs
230V, Three phase 50hz 60hz motors available.
ANSI 150 Flanges, baseplate and dry running protection available on request.

The Gemmecotti HTA magnetically coupled pump range is a regenerative turbine pump designed for chemical, petrochemical, and pharmaceutical applications where a chemical resistant pump is required. Thanks to its design benefits, this mag drive pump series is a preferable chemical transfer pump option for transferring highly corrosive, toxic, noxious and carcinogenic liquids and fluids containing up to 20% entrained gas.

Leak-proof design: The magnetic drive pump design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
Reliable design: The HTT turbine pump series has a simple design, which makes it an extremely reliable pumping solution that provides cost-effective maintenance and has a longer service life
Low maintenance: By eliminating the seals, this range of magnetically coupled pumps also gets rid of associated friction loss, wear and noise, meaning efficient pump operation and saving money on spare part costs.
Magnetic coupling: This magnetic drive pump requires no need for motor/pump alignment procedures due to being magnetically coupled.

The HTT turbine mag drive pump is designed with maximum safety in mind and provide an efficient and reliable operation even for transferring fluids containing up to 20% entrained gas. In addition, the magnetically coupled pump series has a sealless design and high chemical resistance, making it an ideal chemical pump solution in highly corrosive applications.

Chemicals
High corrosive liquids
Toxic, noxious and carcinogenic liquids
Chemical and petrochemical
Pharmaceutical
Paper mills
Textile industry,
Food processing
Water treatment plants

	PP	PVDF	EPDM	VITON	Pure Ceramic	PTFEC
Casing	X	X
Impeller	X	X
O-Ring			X	X
Static shaft					X
Static						X

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
