Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

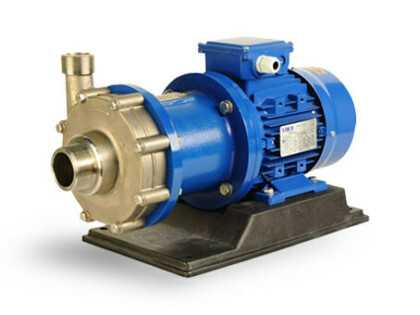

Gemmecotti HTM Metallic Centrifugal Magnetic Drive Pump

Chemical Pump & Corrosive Liquid Pump

Key Specifications
Max Flow Rate	533lpm
Max Head	24M
Max Temperature	160°C
Maximum Viscosity	200 cP
Solids	0mm
Size	3/4” to 2 1/2”

Datasheet

Enquire now about this product

The Gemmecotti HTM Series Metallic Centrifugal Magnetic Drive Pump is a metallic magnetically coupled pump constructed in AISI 316 stainless steel as standard and in Hastelloy or Titanium on request. The HTM series of mag drive centrifugal pumps are only suitable for clean liquids that do not contain any solids in suspension, including highly corrosive fluids. Thanks to the innovative design of the Gemmecotti magnetically coupled pumps, there is no direct connection between the electric motor shaft and the impeller, meaning no mechanical seals that are prone to wear are needed, and the risk of leakage is eliminated.

The sealing of this centrifugal magnetic drive pump is maintained by a magnetic coupling, which removes the need for a mechanical seal and reduces the pumps maintenance costs. Eliminating the seals for magnetically coupled pump also get rid of associated friction loss, wear and noise, meaning cost-effective and efficient pump operation. Popular applications of the HTM magnetic drive centrifugal pump includes chemicals, corrosive, toxic, noxious and carcinogenic liquids, hydrocarbons, pyrophoric, heat transfer oils, refrigerants and cryogenics, radioactive liquids. The mag drive pumps series HTM are also available in ATEX versions for zone 1 and 2.

Features of the HTM Mag Drive Pump:

Metallic centrifugal magnetic coupling pump
AISI 316 stainless steel as standard (available in Hastelloy or Titanium on request)
Suitable for highly corrosive liquids and chemicals
High torque magnetic coupling as standard
Low maintenance costs
230V, Three phase 50hz / 60hz motors available.
Flanges, baseplate and dry running protection available on request.
ATEX version for zone 1 and 2 available on request

The Gemmecotti HTM magnetically coupled pump range is a centrifugal pump designed for transferring highly corrosive, toxic, noxious and carcinogenic fluids. Thanks to its design benefits, this mag drive pump series is a preferable option where a reliable chemical pump is required.

Leak-proof design: The magnetic drive pump design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
Reliable design: The HTM mag drive pump series has a simple design, which makes it an extremely reliable pumping solution that provides cost-effective maintenance and has a longer service life
Low maintenance: By eliminating the seals, this range of magnetically coupled centrifugal pumps also gets rid of associated friction loss, wear and noise, meaning efficient pump operation and saving money on spare part costs.
Magnetic coupling: This magnetic drive pump requires no need for motor/pump alignment procedures due to being magnetically coupled.
ATEX Certification: HTM centrifugal pump is also available with ATEX versions for zone 1 and 2.

The HTM mag drive centrifugal pump is designed with maximum safety in mind and provide an efficient and reliable operation. In addition, the magnetically coupled pump series has a sealless design and high chemical resistance, making it an ideal chemical transfer pump solution for highly corrosive applications.

Chemicals
High corrosive liquids
Toxic, noxious and carcinogenic liquids
Chemical and petrochemical
Pharmaceutical
Paper mills
Textile industry,
Food processing
Water treatment plants

The Gemmecotti HTM Series metallic centrifugal mag drive pumps are available with the following material options:

	SS AISI 316	Hastelloy	Titanium	EPDM	VITON	Hastelloy C276	PTFEC	Graphite
Casing	X	X	X
Impeller	X	X	X
O-Ring				X	X
Static shaft						X
Bushing							X	X

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
