How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

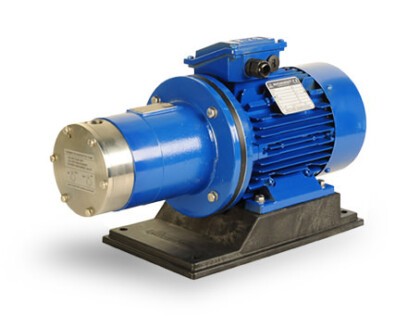

Gemmecotti HTA Regenerative Turbine Magnetic Drive Pump

Chemical Pump & Corrosive Liquid Pump

Key Specifications
Max Flow Rate	116lpm
Max Head	80M
Max Temperature	160°C
Max Viscosity	40 cP
Solids	0mm
Size	3/4” to 1”

Datasheet

Enquire now about this product

The Gemmecotti HTA Series Regenerative Turbine Magnetic Drive Pump is a metallic magnetically coupled pump constructed as standard in AISI 316 stainless steel or in Hastelloy or Titanium on special requirement. The HTA series of magnetic drive pumps are designed for pumping clean, highly corrosive liquids that do not contain solids such as toxic, noxious and carcinogenic liquids and fluids containing up to 20% entrained gas. Suitable for low flow/high head applications, this mag drive pump has a robust and reliable design for maximum chemical resistance and is typically used as a chemical transfer pump.

Thanks to its magnetic coupling, this turbine pump benefits from not having a mechanical seal that may be prone to leak after wear, which is ideal given the nature of the liquid the pump is designed for. This magnetic drive pump also benefits from a smooth operation, less noise and wear, meaning the HTA regenerative turbine pump series provide efficient pump operation, cost-efficient maintenance, and long service life. The mag drive turbine pumps series HTA are also available in ATEX versions for zone 1 and 2.

Features of the HTA Mag Drive Pump:

Metallic magnetic coupling pump
AISI 316 stainless steel as standard (available in Hastelloy or Titanium on demand)
Suitable for highly corrosive fluids
High torque magnetic coupling as standard
Low maintenance costs
230V, Three phases 50hz / 60hz motors available.
Flanges, baseplate, suction strainer and dry running protection available on demand
ATEX model for zone 1 and 2 available on demand

The Gemmecotti HTA magnetic drive pump range is a regenerative turbine pump designed for chemical, petrochemical, and pharmaceutical applications where a chemical resistant pump is required. Thanks to its design benefits, this mag drive pump series is a preferable chemical pump option for transferring highly corrosive, toxic, noxious and carcinogenic liquids and fluids containing up to 20% entrained gas.

Leak-proof design: The magnetically coupled design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
Reliable design: The HTA series of mag drive pumps have a simple design, which makes them extremely reliable pumping solutions that provide cost-effective maintenance and have a longer service life
Low maintenance: By eliminating the seals, this range of magnetically coupled pumps also gets rid of associated friction loss, wear and noise, meaning efficient pump operation and saving money on spare part costs.
Magnetic coupling: This magnetic drive pump requires no need for motor/pump alignment procedures due to being magnetically coupled.
ATEX Certification: HTA regenerative turbine pump is also available with ATEX versions for zone 1 and 2.

The HTA turbine mag drive pump is designed with maximum safety in mind and provide an efficient and reliable operation even for transferring fluids containing up to 20% entrained gas. In addition, the magnetically coupled pump series has a sealless design and high chemical resistance, making it an ideal pumping solution for highly corrosive applications.

High corrosive liquids and chemicals
Toxic, noxious and carcinogenic liquids
Chemical and petrochemical
Pharmaceutical
Paper mills
Textile industry,
Food processing
Water treatment plants

The Gemmecotti HTA Series Metallic Regenerative Turbine Mag Drive Pumps are available with the following material options:

	SS AISI 316	Hastelloy	Titanium	EPDM	VITON	Hastelloy C276	PTFEC
Casing	X	X	X
Impeller	X	X	X
O-Ring				X	X
Static Shaft						X
Bushing							X

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
