How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

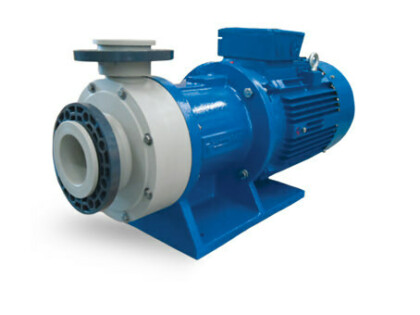

Gemmecotti HCM Centrifugal Magnetic Drive Pump

Chemical Pump & Corrosive Liquid Pump

Key Specifications
Max Flow Rate	2166lpm
Max Head	48M
Max Temperature	90°C
Max Viscosity	200 cP
Solids	0mm
Size	1” to 4”

Datasheet

Enquire now about this product

The Gemmecotti HCM Series Centrifugal Magnetic Drive Pump is a thermoplastic magnetically coupled pump designed from solid block plastic to ensure a strong and resilient structure. The HCM mag drive pump series is designed for pumping highly corrosive liquids, including toxic, noxious and carcinogenic liquids. Due to the robust pump design, HCM magnetic drive centrifugal pump has a great resistance in terms of pressure and temperature, making it an ideal pumping solution for heavy-duty applications.

Thanks to its magnetic coupling, this mag drive pump benefits from not needing a mechanical seal that may be prone to wear, lowering the overall maintenance costs for the pump's life cycle. The magnetic sealing system ensures maximum safety and efficiency by removing the risk of any corrosive liquids leaking from the pump. Eliminating the seals for magnetically coupled pumps also get rid of associated friction loss, wear and noise, meaning cost-effective and efficient pump operation. Popular applications of the HTM magnetic drive centrifugal pump includes chemicals, corrosive, toxic, noxious and carcinogenic liquids, hydrocarbons, pyrophoric, heat transfer oils, refrigerants and cryogenics, radioactive liquids.

Features of the HCM Mag Drive Pump:

Thermoplastic magnetic drive centrifugal pump
Suitable for highly corrosive liquids and chemicals
Machined from solid block plastic
Strong and robust structure
Flanged connections as standard
High torque magnetic coupling as standard
Low maintenance costs
230v, Three-phase 50hz / 60hz motors available
Dry running protection available on request

The Gemmecotti HCM magnetically coupled pump range is a centrifugal pump designed for transferring highly corrosive, toxic, noxious and carcinogenic. Thanks to its design benefits, this mag drive pump series is a preferable option where a reliable chemical transfer pump is required for heavy-duty applications.

Leak-proof design: The magnetic drive pump design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
Reliable design: The HCM mag drive centrifugal pump series has a simple design, which makes it an extremely reliable pumping solution that provides cost-effective maintenance and has a longer service life
Low maintenance: By eliminating the seals, this range of magnetically coupled pumps also gets rid of associated friction loss, wear and noise, meaning efficient pump operation and saving money on spare part costs.
Magnetic coupling: This magnetic drive pump requires no need for motor/pump alignment procedures due to being magnetically coupled.

The HCM mag drive pump is designed with maximum safety in mind and provide an efficient and reliable operation. In addition, the magnetically coupled centrifugal pump series has a seal less design and high chemical resistance, making it an ideal chemical pump solution for highly corrosive applications.

Chemicals
High corrosive liquids
Toxic, noxious and carcinogenic liquids
Chemical and petrochemical
Pharmaceutical
Paper mills
Textile industry,
Food processing
Water treatment plants

The Gemmecotti HCM Series thermoplastic centrifugal mag drive pumps are available with the following material options:

	PP	PVDF
Casing	X	X
Impeller	X	X

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
