Gemmecotti H-IBC Portable Centrifugal Magnetic Drive Pump

Chemical Pump & Corrosive Liquid Pump

Key Specifications
Max Flow Rate 216lpm
Max Head 14M
Max Temperature 90°C
Max Viscosity 200 cP
Solids 0mm
Datasheet
Download this file
Enquire now

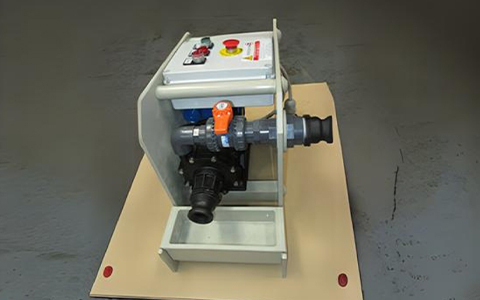

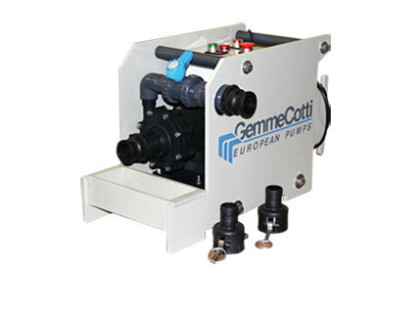

The Gemmecotti H-IBC Centrifugal Magnetic Drive Pump is an HTM series magnetically coupled pump placed in a carrying frame for portability. Flexible to use in different applications, this mag drive pump is an ideal solution where the pump is required to move around. The use of this system is easy and compact as it comes complete with quick-release couplings for easy connection/disconnection from an IBC. The centrifugal magnetic drive pump also benefits from a control panel with illuminated start/stop buttons, an emergency stop button and a flexible power cable.

Being constructed in plastic for pumping highly corrosive liquids, the HTM mag drive pump sealing is maintained by a magnetic coupling, eliminating the need for a wearing mechanical seal and lowering the overall maintenance costs for the pump's life cycle. The magnetically coupled centrifugal pump ensures maximum safety and efficiency by eliminating the risk of any corrosive liquids leaking from the chemical pump. Typical applications of the Gemmecotti H-IBC magnetic drive pump include; IBC transfer, highly corrosive liquids, toxic, noxious and carcinogenic liquids.

Features of the H-IBC Mag Drive Pump:

  • Magnetic drive centrifugal pump
  • Portable pump system complete with quick-release couplings
  • Carrying frame
  • Drip tray under pump inlet
  • Control panel complete with start/stop and emergency stop buttons
  • Suitable for highly corrosive liquids
  • High torque magnetic coupling NeFeBo as standard
  • Low maintenance costs
  • 230V, 3 Phase 50hz / 60hz motors available.
  • Dry running protection and 2 wheeled version available on request.

The Gemmecotti H-IBC magnetically coupled pump range is a centrifugal pump typically used as a chemical pump for transferring highly corrosive, toxic, noxious and carcinogenic liquids. Thanks to its design benefits, this mag drive pump series is a preferable option where a portable chemical resistant pump is required

  • Portable pumping solution: The H-IBC magnetic drive pump is a flexible and compact pumping solution that can be easily moved around due to the quick-release coupling, its compact shape and practical handles located on the top.
  • Easy to use: This magnetically coupled centrifugal pump is completed with a control panel composed of illuminated start and stops push buttons, a red LED for power on, an emergency stop button with manual restoration, and a specific container to collect dripping fluid.
  • Leak-proof design: The magnetic drive pump design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
  • Reliable design: The H-IBC centrifugal pump series has a simple design, which makes it an extremely reliable pumping solution that provides cost-effective maintenance and has a long service life.
  • Low maintenance: By eliminating the seals, this range of magnetically coupled pumps also gets rid of associated friction loss, wear and noise, meaning efficient pump operation and saving money on spare part costs.
  • Magnetic coupling: This magnetic drive centrifugal pump requires no need for motor/pump alignment procedures due to being magnetically coupled.

The H-IBC mag drive pump is designed with maximum safety in mind and provide an efficient and reliable operation. In addition, the magnetically coupled pump series has a portable design and high chemical resistance, making it an ideal pumping solution for highly corrosive applications.

  • Chemicals
  • High corrosive liquids
  • Toxic, noxious and carcinogenic liquids
  • Chemical and petrochemical
  • Pharmaceutical
  • Paper mills
  • Textile industry,
  • Food processing
  • Water treatment plants

The Gemmecotti H-IBC Portable Magnetic Drive Centrifugal Pump System for IBC Tanks is available with the following material options:

PPPVDFEPDMVITONAluminium Oxide, Al2O3
PTFEC
CasingXX
ImpellerXX
O-RingXX
Static ShaftX
BushingX

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.
