Flux JUNIORFLUX Barrel Pump Kit

Chemical Drum Pump & Corrosive Liquids Pump

Key Specifications
Max Flow Rate 56lpm
Max Head 8.5M
Max Temperature 45°C
Max Viscosity 250 cP
Solids 0mm
Size 1" to 1 1/4"
Datasheet
Download this file
Enquire now

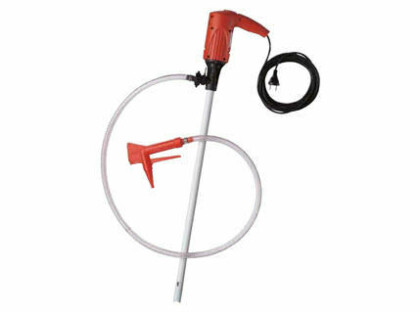

The Flux JUNIORFLUX Barrel Pump kit is designed as a ready to use kit for transferring smaller quantities of acids, alkalis, deionized water, cleaning agents and photo developing fluids from a drum or IBC tank. The chemical drum pump kit, supplied complete with PVC hose and manual dispensing nozzle, has a smaller tube set diameter enabling it to access narrow-necked drums or IBCs. This electric barrel pump kit can be easily operated with one hand and requires minimal force to change between drums due to its compact and lightweight design. There is no danger of the fluid being contaminated by shaft lubricants as the pumped fluid lubricates the shaft.

The JUNIORFLUX Flux drum pump is supplied with the FEM 3070 motor as standard, which has an IP24 protection class, 2 step speed adjustment, 55m cable with 2 pole connector, 2m hose and manual dispensing nozzle. Available in 230v for long operation hours, the JUNIORFLUX electric drum pump for chemicals has a high operational safety due to the overload cut-out switch. This chemical transfer pump is a perfect solution for transferring low viscosity fluids, including acids, chemicals and light oils with viscosity up to 250 CP. As a Flux pumps supplier, we recommend this electric drum pump be used only to transfer one liquid.

Features of the Juniorflux Flux Drum Pump:

  • Cost effective, lightweight chemical drum pump
  • Complete with 2m hose and manual dispensing nozzle
  • Suitable for transferring smaller quantities from IBCs and barrels
  • Can pump out of narrow-necked containers
  • Minimal force required to change drums
  • With mains connection - enables very long operating times
  • High operational safety due to overload cut-out switch
  • Easy single-hand operation
  • Low storage space required
  • Popular as a cost effective chemical transfer pump
  • Sealless in the liquid area
  • Available in 230v
  • FEM 3070 motor, IP24 protection, 2 step speed adjustment

This Flux pump is a perfect cost-effective pump for transferring light fluids and chemicals from a drum or IBC. Supplied with 2m hose and manual dispensing nozzle, this is a complete dispensing solution.

  • High-quality barrel pump – Flux pumps are well known German made barrel pumps that have been in the market for over 70 years.
  • Powerful commuter motors – The JUNIORFLUX electric barrel pump kit with the main connection is a perfect pumping solution for a long operating process.
  • Small outer diameter –This feature allows this chemical pump to be used for narrow-necked drums and IBCs.
  • Low weight – This flux drum pump kit can be easily used with one hand and move between drums or IBCs due to the light weighted and space-saving design.
  • Seal-less design – The JUNIORFLUX has no mechanical seal, allowing the fluid to flow through the pump bearings and preventing leakages and wear.

Due to the chemical resistant impellers, this chemical drum pump is suitable for various industrial applications. The Flux JUNIORFLUX drum pump kit is a versatile solution as it is available in different materials compatible with various fluids making it a highly popular chemical transfer pump:

  • Battery acid
  • Ammonia water
  • Glycols (up to 40%)
  • Sodium hydroxide
  • Soap solution
  • Boric acid
  • Phosphoric acid (up to 50%)
  • Hydrochloric acid (up to 30%)
  • Sulfuric acid (up to 40 %)
  • Fruit acids

The Flux Juniorflux Barrel Pumps are available with the following material options:

PP
TUBESETX

FAQs

Put most simply, a barrel pump, is a pump connected to an immersion tube that sits within the drum with its motor located outside of the container. The pump draws up the fluid through its immersion tube and is then dispensed via a hose or pipe that is connected to its outlet.

If you have a 1000 litre IBC you will require a 1200mm tube, a 205 litre drum requires a 1000mm and if you have a smaller container 700mm and shorter tubes are available. For larger containers we can offer longer tube sets on specification

If your fluid is prone to crystallisation, then you can use the F310 or F430 models as the pump bearings are protected from wear.

The F425 model is capable of emptying 99.98% of a container's contents. This drum pump is generally selected when the liquid is particularly valuable to minimise waste.

The F426 model is capable of both mixing and pumping the liquid within the container, which is a lower cost solution when compared to a separate mixer and pump.

For liquids with a flashpoint below 50°C, we offer our Stainless Steel F400 models and Viscopower series with ATEX approved motors or Viscoflux Lite EX.

Our range includes both FDA and 3A approved hygienic models. When the viscosity is >1200cP we offer the sanitary Viscopower F570 and F580 models and the Viscoflux Mobile. If <1200cP we typically select the F427, or the F430 food grade version when pumping alcohols or foodstuff with solids.

If you are pumping one liquid or very similar liquids, you can use the F314 or F424 seal-less models, if you are pumping multiple diferent liquids or where cross contamination is not desirable use the F310 or F430 drum pumps.

To ensure you get the correct Flux spare parts, we need to identify the exact Flux pump model you have. Please provide the model and serial number found on the pump name plate.

Castle Pumps can supply all Flux pump parts detailed on the spare parts list including motor, o-ring, shaft seal, impeller, inner and outer tube worldwide.

If you are pumping one liquid or very similar liquids, you can use the F314 or F424 seal-less models provided that the materials are compatible, if you are pumping multiple diferent liquids or where cross contamination is not desirable use the F310 or F430 drum pumps.

The general rule of thumb is that for low-medium duty applications where viscosity is <250cP the F300 is sufficient. For heavy duty applications, flammable liquids and viscosities of <1200cP choose the F400. For shear sensitive fluids or viscosities that exceed 1200cP then the Viscpower is required. Upon disclosure of your application, we can confirm the best solution.

All Flux barrel and IBC pump models are available with additional accessories that we can supply as a kit should you need delivery hose, a trigger nozzle, valves, flow meter and any other fittings.
