Flux 99.98% Emptying Barrel Pump Kit

Chemical Drum Pump & Corrosive Liquids Pump

Key Specifications
Max Flow Rate 115lpm
Max Head 8M
Max Temperature 100°C
Max Viscosity 600 cP
Solids 2mm
Size 1" to 1 1/4"
Datasheet
Download this file
Enquire now

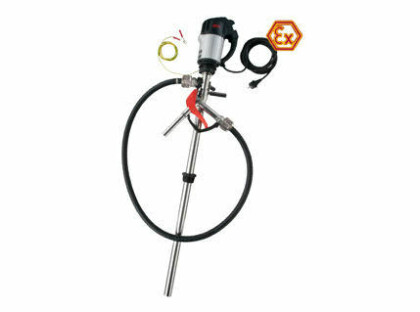

The Flux 99.98% Emptying Barrel Pump Kit is designed as a ready-to-use kit for 99,98 % drum emptying and transferring low viscosity expensive or dangerous liquids from a drum or IBC tank. This chemical barrel pump kit is supplied complete with 2m hose and manual stainless steel dispensing nozzle, making it a great pumping solution for use even in hazardous applications. The beauty of this pre-assembled Flux pump kit is that it comes complete with a flow backstop valve at the pump inlet that can be closed before removing the pump from the container. This unique feature makes the electric barrel pump ideal for handling high-value fluids as it ensures any excess liquid stays in the tube when moving the pump from drum to drum to prevent waste or unnecessary expenditures.

This electric drum pump kit for chemicals can easily empty up to 99.98% of the barrel contents, preventing waste and limiting fluid spillage, which is highly beneficial when handling high-grade/high-value fluids, for example, in the cosmetic industry. Suitable to transfer low viscosity expensive or dangerous liquids up to 600cP, this Flux drum pump is also easy to dismantle and clean, meaning it can be used for multiple pumping applications. The chemical barrel pump can also be supplied with ATEX certificate depending on the application requirements.

Features of the 99.98% Emptying Flux Drum Pump:

  • Flowback stop valve
  • Up to 99.98% barrel emptying
  • Comes equipped with either a F416 air motor or F460 Ex 230V electric motor
  • Minimal effort required to clean due to ease of dismantling
  • Suitable for transferring almost every low viscosity fluid
  • Optimum barrel emptying due to unique impellor design
  • Version in stainless steel is tested and certified according to ATEX-Directive 94/9/EC, category 1/2, for use in Zone 0 – EC-Type-Examination Certificate No. PTB 00 ATEX 4110 X

This Flux pump is a perfect pumping solution for transferring low viscosity, high value or dangerous fluids from drum or IBC. The chemical barrel pump has a compact design and provides pulsation-free fluid transfer.

  • High-quality barrel pump – Flux drum pumps are well-known German-made pumps that have been in the market for over 70 years.
  • Quickly disassembled for cleaning – This electric barrel pump can be quickly and easily taken apart for cleaning, making it a perfect pumping solution for many industrial applications.
  • Optimal barrel emptying – This Flux pump kit can empty up to 99.98% of the barrel contents, providing optimal use of fluid and preventing waste.
  • No fluid spillage – Flux 99.98% Emptying Barrel Pump Kit has a unique flow backstop valve that ensures any excess liquid stays in the tube when moving the pump from drum to drum to prevent spills and waste.

The Flux 99.98% Emptying Barrel Pump Kit is designed for transferring light liquids, including chemicals and acids 600 cP. The chemical barrel pump is ideal for use with expensive or dangerous liquids where spills should be avoided.

  • Acids such as hydrochloric acid, boric acid, sulfuric acid, citric acid
  • Petroleum, diesel, heating oil, hydraulic oil, engine oil
  • Gasoline, formic acid (as from 85 %), ethylene glycol

The Flux Pump Kit for 99.98% Barrel Emptying is available with the following material options:

STAINLESS STEEL 316 L / 316 Ti (S)
TUBESETX

FAQs

Put most simply, a barrel pump, is a pump connected to an immersion tube that sits within the drum with its motor located outside of the container. The pump draws up the fluid through its immersion tube and is then dispensed via a hose or pipe that is connected to its outlet.

If you have a 1000 litre IBC you will require a 1200mm tube, a 205 litre drum requires a 1000mm and if you have a smaller container 700mm and shorter tubes are available. For larger containers we can offer longer tube sets on specification

If your fluid is prone to crystallisation, then you can use the F310 or F430 models as the pump bearings are protected from wear.

The F425 model is capable of emptying 99.98% of a container's contents. This drum pump is generally selected when the liquid is particularly valuable to minimise waste.

The F426 model is capable of both mixing and pumping the liquid within the container, which is a lower cost solution when compared to a separate mixer and pump.

For liquids with a flashpoint below 50°C, we offer our Stainless Steel F400 models and Viscopower series with ATEX approved motors or Viscoflux Lite EX.

Our range includes both FDA and 3A approved hygienic models. When the viscosity is >1200cP we offer the sanitary Viscopower F570 and F580 models and the Viscoflux Mobile. If <1200cP we typically select the F427, or the F430 food grade version when pumping alcohols or foodstuff with solids.

If you are pumping one liquid or very similar liquids, you can use the F314 or F424 seal-less models, if you are pumping multiple diferent liquids or where cross contamination is not desirable use the F310 or F430 drum pumps.

To ensure you get the correct Flux spare parts, we need to identify the exact Flux pump model you have. Please provide the model and serial number found on the pump name plate.

Castle Pumps can supply all Flux pump parts detailed on the spare parts list including motor, o-ring, shaft seal, impeller, inner and outer tube worldwide.

If you are pumping one liquid or very similar liquids, you can use the F314 or F424 seal-less models provided that the materials are compatible, if you are pumping multiple diferent liquids or where cross contamination is not desirable use the F310 or F430 drum pumps.

The general rule of thumb is that for low-medium duty applications where viscosity is <250cP the F300 is sufficient. For heavy duty applications, flammable liquids and viscosities of <1200cP choose the F400. For shear sensitive fluids or viscosities that exceed 1200cP then the Viscpower is required. Upon disclosure of your application, we can confirm the best solution.

All Flux barrel and IBC pump models are available with additional accessories that we can supply as a kit should you need delivery hose, a trigger nozzle, valves, flow meter and any other fittings.
