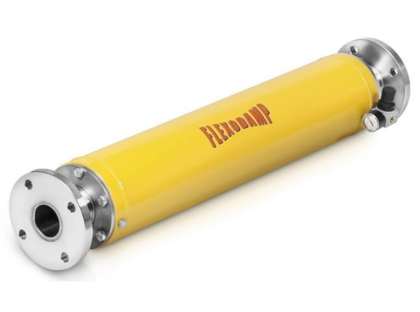

FLEXODAMP FDR Flexible Pulsation Dampener

The FLEXODAMP FDR Pulsation Dampener is a rigid pulsation dampener designed to be installed on the discharge side of the pump to minimise pulsations, absorb vibrations between pump and rigid pipework and reduce water hammer. Not only does this provide a smoother, more gentle flow, which is particularly desirable in metering applications, but puts less strain on the pump and other pipework which protects the system and increases lifespan.

A distinct advantage of the FLEXODAMP pulsation dampener over others is it’s inline assembly, which means it takes up no additional space in the installation. It is available in various connections and materials including Natural Rubber, EPDM, NBR and food grade materials making it ideal for many applications.

Whilst suitable for use with various types of positive displacement pump, this is the model of pulsation dampener that we specify with our peristaltic pump range.

Features of the FLEXODAMP FDR Pulsation Dampener:

• Reduces pulsations by up to 95%, vibrations, water hammer and noise
• Simple to install, with limited installation space required thanks to being inline
• Available in lengths from 1000mm to 1500mm
• Can handle solids and viscous fluids
• Inner tubes available in Natural Rubber, EPDM, NBR
• Connections available in PP, PVC, PVDF and Stainless 304 and 316
• Connection types include DIN flanges, ANSI flanges, Tri-clamp, DIN 11851 and SMS
• Food grade version available
