Debem IM Centrifugal Vertical Immersion Pump
Chemical Pump & Corrosive Fluid Pump
| Key Specifications | |
|---|---|
| Max Flow Rate | 2833lpm |
| Max Head | 41M |
| Max Temperature | 100°C |
| Max Viscosity | 500cP |
| Solids | 15mm |
| Size | 1” to 3” |

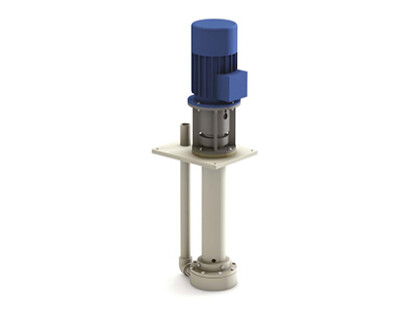

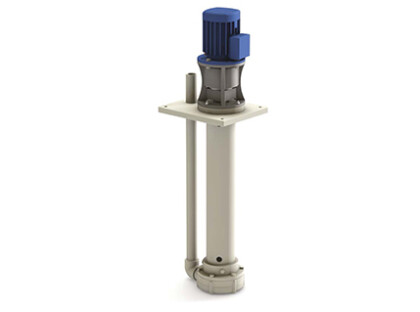

The Debem IM Series of vertical immersion pumps are resin encased centrifugal pumps designed for acids, alkalis or very dirty liquids containing solids. The IM vertical cantilever pump is designed primarily for fixed installations for tank to tank transfer or recirculation of fluids.
Our IM series centrifugal immersion pump has an open impeller design enabling it to handle liquids with a viscosity up to 500cps, and suspended solids up to 15mm in diameter.
Features of the IM Vertical Cantilever Pump:
- Centrifugal vertically immersed sump pump
- Lift capability of 0M - Flooded
- IEC & NEMA motors available in single and 3 phase 50hz/60hz
- Zero welds and single piece construction ensures longevity
- Removable motor whilst in installation
- Extremely easy maintenance

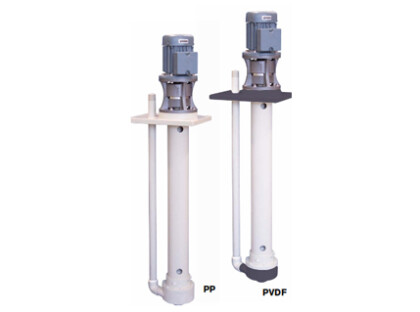

- Available in PP or PVDF
- Length up to 1250mm
- Up to 15mm Solids Passage
| Item | PP | PVDF & CF | Viton | EPDM |
| O RING | x | x | ||
| Impeller | x | x | ||
| Pump casing | x | x |
FAQs
Otherwise known as a vertical column pump, this is where there is an elongated shaft to separate the motor above the fluid from the pump that is immersed in the fluid.
As the pump head is within the fluid, vertically immersed pumps maintain a flooded suction. They are therefore ideal for applications where typically a self-priming pump is required, such as the emptying of tanks, reservoirs, sumps and wells.
The main difference is that whilst a submersible pump's full assembly including the motor is submerged in the fluid, with a vertical column pump, only the pump is and the motor remains dry above it.
To ensure you get the correct Debem spare parts, we need to identify the exact Debem pump model you have. Please advise us of the model number and serial number which can be found on the pump label which is usually on the top of the pump body.
Castle Pumps can supply all Debem pump parts detailed on the spare parts list including diaphragms, balls, ball seats and casings.
