How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

What information do you need to quote me for Debem pump parts?

To ensure you get the correct Debem spare parts, we need to identify the exact Debem pump model you have. Please advise us of the model number and serial number which can be found on the pump label which is usually on the top of the pump body.

I need a Debem pump parts distributor near me, can you help?

Castle Pumps can supply all Debem pump parts detailed on the spare parts list including diaphragms, balls, ball seats and casings.

Can I get a chemical pump for use with multiple chemicals?

We would need to cross check compatibility of the materials of all chemicals you wish to pump, but it is possible. If you are pumping multiple different liquids or where cross contamination is not desirable we suggest using the F310 or F430 chemical drum pumps.

Does concentration of my chemical matter for pump selection?

Yes this is absolutely something to consider for chemical transfer pumps! A material’s resistance to a chemical can change depending on the concentration of the chemical and the temperature. For example, Hastelloy C is compatible with Sulphuric Acid at 98% concentration and up to 60°C, but at 80% Hastelloy C is only compatible up to 20°C.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

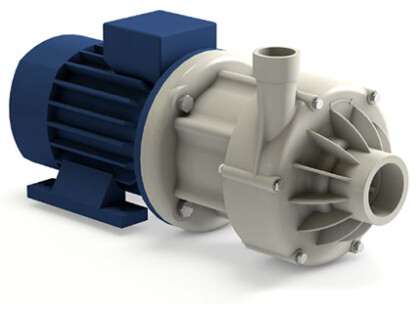

Debem DM Centrifugal Magnetic Drive Pump

Chemical Pump & Corrosive Fluid Pump

Key Specifications
Max Flow Rate	583lpm
Max Head	25M
Max Temperature	95°C
Max Viscosity	150cP
Solids	0mm
Outlet Sizes	1" to 2"

Debem DM Centrifugal Magnetic Drive Pump - Datasheet

Enquire now about this product

The Debem DM Series of magnetic drive pumps is a centrifugal pump that is magnetically coupled available in polypropylene (PP) or in Polyvinylidene fluoride (PVDF). This range of mag drive pumps are low maintenance and designed for applications that seal less pump is required. Suitable for transferring clean liquids that do not contain any solids in suspension, including highly corrosive, toxic, noxious and carcinogenic liquids, Debem DM magnetic drive pumps are ideal for continuous running applications. This centrifugal magnetic drive pump requires a positive suction pressure to function correctly and can handle liquids with a viscosity up to 150cps.

Thanks to its polypropylene or PVDF constructed body combined with its seal-less, anti-leak design, the DM magnetically coupled centrifugal pump is popular for applications that include aggressive chemicals and acids and is typically used as a chemical transfer pump. The magnetic coupling also increases the safety of the pump by significantly reducing the chance of corrosive liquids leaking thanks to the absence of a mechanical seal that is prone to wear.

Features of the Debem DM Mag Drive Pump:

Centrifugal magnetic coupling pump
Lift capability of 0M - Flooded
Leak free construction thanks to seal-less design
Zero welds ensures low maintenance intervals
IEC & NEMA motors available in single and 3 phase 50hz/60hz
Quick and easy to maintain
Inexpensive and readily available spares
Available in PP or PVDF

The Debem DM Series magnetically coupled pump range is a centrifugal pump designed for transferring highly corrosive, toxic, noxious and carcinogenic fluids. Thanks to its design benefits, this mag drive pump series is a preferable option where a reliable chemical resistant pump is required for continuous running applications.

Leak-proof design: The magnetic drive pump design eliminates the risk of fluid leakage. As a result, there isn't any risk of wasting expensive products or leakage of hazardous fluids.
Reliable design: The Debem DM mag drive centrifugal pump series has a simple design, which makes it an extremely reliable pumping solution that provides cost-effective maintenance and has a longer service life
Easy maintenance: This magnetically coupled pump is design with a small number of components, making it very easy to maintain.
Magnetic coupling: This magnetic drive pump requires no need for motor/pump alignment procedures due to being magnetically coupled.

The Debem DM mag drive centrifugal pump is designed with maximum safety in mind and provide an efficient and reliable operation. In addition, the magnetically coupled pump series has a seal less design and high chemical resistance, making it an ideal chemical pump solution for highly corrosive applications.

Chemicals
High corrosive liquids
Toxic, noxious and carcinogenic liquids
Chemical and petrochemical
Pharmaceutical
Textile industry,
Water treatment plants

Material options for the Debem Magnetically Coupled Centrifugal Pump:

Item	PP	PVDF & CF	Alumina Ceramic	Viton	EPDM	PTFE & 30% Graphite
SHAFT			x
THRUST BEARING WASHER						x
BEARING						x
O RING				x	x
Impeller	x	x
Pump casing	x	x
Head Thrust Bearing Washer			x

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
