Debem Cubic AODD Pump

Dosing Pump

Key Specifications
Max Flow Rate 17lpm
Max Head 80M
Max Temperature 95ºC
Max Viscosity 15000 cP
Solids 0.5mm
Size 3/8”
Datasheet
Download this file
Enquire now

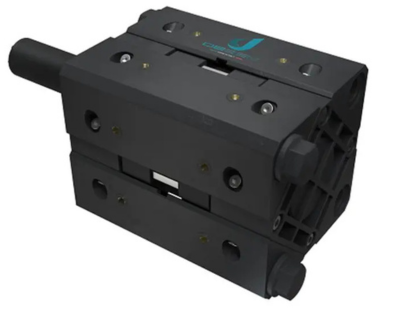

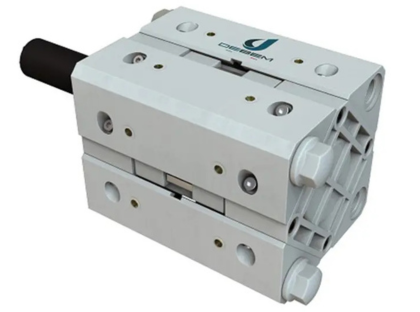

The Debem Cubic Air Operated Diaphragm Pump is an Italian manufactured AODD pump, designed to very high standards. Thanks to its compact design makes it an ideal air operated double diaphragm pump where the installation doesn’t allow for the size of standard alternatives.

The Cubic AODD pump’s low flow rate makes it ideal for small volume transfer and dosing pump applications particularly popular in the chemical and industrial markets. Being ATEX approved to Zone 1 or 2 makes them also suitable for potentially hazardous applications.

The Debem range of air operated diaphragm pumps are what we like to describe as “Fit and forget” solutions. Thanks to their low maintenance, long service life and little manual intervention required, the air operated diaphragm pumps can just be left to do their job.

Features of the Debem Cubic AODD Pump:

  • Compact design – 105mm x 2011mm x 105mm max dimensions
  • Can be run dry and can pump long distances and dry run without damage, making them unaffected by process stops and pauses in the production line.
  • Self-priming capabilities of up to 3m for difficult suction conditions
  • Can handle viscosities up to 15000 cps (depending upon installation)
  • Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
  • Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
  • Wide range of uses - Can handle viscous fluids with low moisture content, solids up to 0.5mm and aggressive chemicals due to the various diaphragm materials.
  • Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
  • Fine tuning of motor speed at a constant pressure.
  • Actuated via a non-lubricated air system
  • 3 suction & delivery port positions
  • ATEX approved to Zones 1 & 2, II 2/2 GD c IIB T135ºC & II 3/3 GD c IIB T135ºC)

Read our guide to air operated diaphragm pumps for more information on how they work and their typical applications.

The Debem Cubic Air Operated Diaphragm Pump is manufactured from the following material options:

NOTES:

1.Pumps can be supplied with single or double diaphragms

2.Parts only available on the MidgetBox:

a)Pyrex Balls

b)PEEK Ball Seats

c)PTFE O-Ring

3.Parts only available for the Cubic 15:

a)ECTFE + CF Pump Body

b)EPDM Balls

c)PTFE Balls

d)PP, ECTFE & SS 316 Ball Seats

e)EPDM, Viton & NBR O-Rings

f)Twin Manifold

FAQs

The pump is made up of two chambers. As the air forces the diaphragm to move in to the one chamber it forces the fluid inside into the outlet, whilst the other chamber fills up with fluid drawn from the inlet. As the diaphragm moves back into the opposite chamber, the fluid now in that chamber is forced out and the other chamber begins to fill up.

Ensuring compatibility with the fluid being pumped is a vital part of AODD pump specification to avoid swelling, erosion and even melting of the casing, diaphragm and balls. Our AODDs are available in PP, Aluminium or Stainless Steel and diaphragms in PTFE, EPDM, NBR, Hytrel and Santoprene. Upon disclosure of the fluid you are handling we will establish the best solution.

Yes - The Debem Food Boxer is constructed of food grade 316 Stainless Steel and PTFE, and the Saniboxer is 3A approved with 360 degree quick emptying system for CIP. The standard Boxer models however are reserved for non-food applications.

Thanks to the absence of a mechanical seal that needs cooling and lubricating, AODDs are able to run dry or against a closed discharge indefinitely without causing damage to the pump.

AODD pumps are very versatile in their ability to handle aggressive fluids, solids and viscous liquids, and their seal-less design meaning less leaks makes them ideal for hazardous fluids. They are however limited to the fact that they require a compressed air supply to be on site to operate the pump.

There are four common installation types. 1. Above the fluid as it is self priming. 2. Drum/tank mounted 3. Immersed (with an exhaustn tube vented to the atmoshpere) 4. Below the fluid with flooded suction

Yes! Whereas with an electric motor you would fit a variable speed drive, with an AODD you can simply adjust the air inlet pressure to control the flow you receive the other end.

Yes, air operated diaphragm pumps have excellent suction capabilities without need for a manual priming device.

Yes. Thanks to the absence of any close fitting or rotating parts, AODD pumps can handle solid content in fluids.

To ensure you get the correct Debem spare parts, we need to identify the exact Debem pump model you have. Please advise us of the model number and serial number which can be found on the pump label which is usually on the top of the pump body.

Castle Pumps can supply all Debem pump parts detailed on the spare parts list including diaphragms, balls, ball seats and casings.

Debem AODD pump models are available with additional accessories including air regulator, pulsation dampener to reduce vibrations and provide a smoother flow, trolley, batch meter for preset transfer, pump cycle counter and basket strainer.

As well as a diaphragm that can run for 50 million cycles before replacement is expected, Debem AODD pumps have a lot fewer internal parts; 30 versus a typical 72 in other models.
