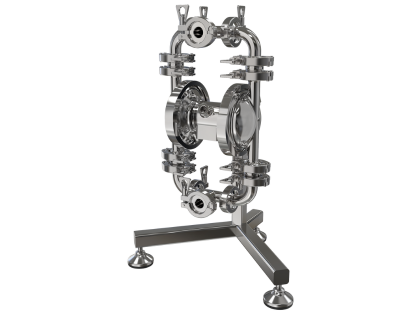

Debem Aisiboxer 01 AODD Pump

The Debem Aisiboxer 01 Air Operated Diaphragm Pump is an Italian manufactured FDA approved AODD pump. Thanks to its various hygienic design benefits, this air operated double diaphragm pump is designed for the food, pharmaceutical and cosmetic industries where a food grade pump is required to prevent contamination of the pumped fluid.

The Aisiboxer AODD pump is made from mechanically polished stainless steel (AISI 316) to a roughness of < 0.8μm and benefits from a 360⁰ rotating quick emptying system to aid Clean in Place as a hygienic pump. If you are looking for a 3A approved solution, we offer the Debem Saniboxer which has the additional benefit of a diaphragm rupture sensor to turn off the pump in such an event to prevent contamination of the product.

This Debem range of sanitary air operated diaphragm pumps are what we like to describe as “Fit and forget” solutions. Thanks to their low maintenance, long service life and little manual intervention required, the air operated diaphragm pumps can just be left to do their job.

Features of the Debem Aisiboxer 01 AODD Pump:

• FDA approved for the safe handling of liquid food stuffs and products in the Pharmaceutical and Cosmetics industry
• Made from mechanically polished SS 316 to a roughness of < 0.8μm
• Stainless Steel stand with 360⁰ rotating quick emptying system to aid Clean in Place and anti-vibration feet
• Patented “Easy-Clean” valve seat system prevents the formation of residue and allowing fast and easy cleaning.
• Special hygienic design in PTFE with EPDM supports. There are no fixing nuts and the diaphragm profile is such that it avoids residue deposits and makes cleaning easier.
• Can be run dry and can pump long distances without damage, making them unaffected by process stops and pauses in the production line.
• Self-priming capabilities of up to 4m for difficult suction conditions
• Can handle viscosities up to 15000 cp (depending upon installation)
• Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
• Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
• Wide range of uses - Can handle viscous fluids with low moisture content, solids up to 5mm and aggressive chemicals due to the various diaphragm materials.
• Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
• Fine tuning of motor speed at a constant pressure.
• Actuated via a non-lubricated air system

Our guide to air operated double diaphragm pumps provides more information on the working principle of this pump.

Debem AISI-BOXER AODD pumps have a large range of benefits that make them a “fit and forget” solution ideal for many hygienic processes.

• FDA approved - Approved as a food grade solution for food, drink and pharmaceutical applications.
• Clean in Place - 360⁰ rotating quick emptying system and patented “Easy-Clean” valve seat system which locks the ball into position whilst preventing the formation of residue
• Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
• Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
• Leak-free – It’s seal-less design makes the Aisi-Boxer air operated diaphragm pump a much cleaner operating solution
• Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
• Dry run capabilities – Can dry run without damage, making unaffected by pauses in a production line or instances where the operator has left them running
• Self-priming up to 6m – Do not need an additional manual priming device to enable them to draw long distances.
• Versatile - Can handle all matters of liquid food products including viscous sauces and syrups, solid content e.g. juices with pulp and additives due to the various diaphragm materials.

AODD pumps are a versatile type of pump design, able to transfer a large range of high and low viscosity fluids thanks to the multiple materials diaphragms are constructed of. The Debem AISI-Boxer air operated diaphragm pumps, as their name suggests, are food grade solutions approved as safe for use with food and pharmaceutical products by FDA. Their pumping mechanism makes them suitable for most liquid food products including those containing solids and shear sensitive fluids. Thanks to running off air supply, they are often chosen as a pumping solution in hazardous environments where it isn't safe to have a mains electrical supply for example in a brewery or distillery.

The Debem Aisi-Boxer Air Operated Diaphragm Pump is constructed of the following materials:

NOTE: The Aisiboxer only has a single, composite, diaphragm consisting of a fluid side material and air side material.
