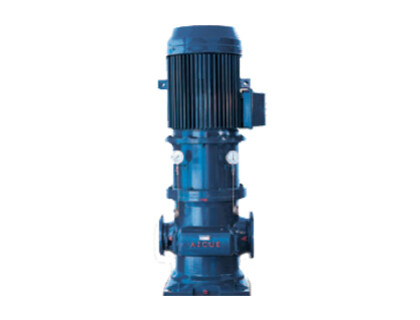

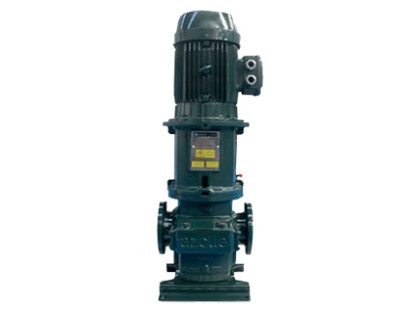

Azcue BT-DF/DG Long Coupled Triple Screw Pump

The Azcue BT-DF/DG Long Coupled Triple Screw Pump is the largest, heaviest duty and highest flow model in the entire Azcue screw pump range. As a positive displacement pump, screw pumps are able to handle lubricating fluids under fluctuating flow rates, pressures and viscosities without losing efficiency. This, combined with its high flow makes the BT-DF/DG suitable for the transfer of large volumes of fuel oils and lubrication fluids such as in bulk storage tank transfer and cargo unloading.

Being long coupled, these self priming screw pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation. The nature of the screw pump design means it can be used where suction capabilities are difficult such as pumping over long distances or where the pump is located above the fluid

This self priming triple screw pump is vertical in design with inline suction and discharge, ideal for space saving applications whilst able to achieve flow rates only larger pumps are capable of. These Azcue pumps can be supplied upon request with a magnetic coupling, which eliminates the wear and eventual leaking that mechanical seals can incur.

Features of the Azcue BT Series Screw Pump:

• High flow, long coupled self priming screw pump
• Pump manufactured in Spain
• Marine type approved by all classification societies
• Additional bearings in pump head to share the strain of operation
• Horizontal inline ports, supplied flanged as standard
• Vertical orientation ideal for space saving installations
• Mechanical seal as standard - magnetic coupling on request
• Available with pressure relief valve
• Smaller footprint than an equivalent performing gear pump
• Low NPSH
• Suitable for lube and fuel oils from 2-1500cSt
• Three phase 50Hz/60Hz motors available. IP55 as standard.
• ATEX versions available

The BT-DF/DG Long Coupled Screw Pump is manufactured by Azcue Pumps. As the official UK Agent of Azcue Pumps, Castle Pumps are a leading Bombas Azcue supplier in the UK with unrivalled technical knowledge. Azcue Pumps are a European manufacturer with over 100 years’ experience in type approved pumps for marine and offshore applications. Today their pumps are installed in more than 10,000 vessel builds. Whilst originally developed for the marine market, Azcue Pumps’ reliability in applications that depend upon the safety and operation of a ship saw them become a desirable product in industrial applications involving water, fuels and lubricants.

One of the key benefits of the BT-DF/DG triple screw pump like the other models in the Azcue range, is that is benefits from interchangeable parts for reduced on board stockholding. We guarantee supply of spares for 15 years from model discontinuation for long term pump servicing, saving the user from having to prematurely replace a pump that just needs maintenance.

Azcue BT-DF/DG pump are cast, machined and assembled at their foundry in Spain. Each pump is manufactured to order and designed to fit your process, resulting in greater efficiency and lower overall lifetime cost in terms of wear and energy consumption. Before leaving the factory, pumps are individually tested to confirm performance meets the requirements set out in your enquiry.

The viscosity of lubricating fluids such as fuels and oils can change with a change in the temperature, unlike fluids such as water. Whereas a centrifugal pump’s performance is affected by fluctuations in the viscosity of the fluid, screw pumps operate just as efficiently. For that reason, given the Azcue BT-DF/DG's extremely high flow capabilities, this triple screw pump is ideal for the following applications:
