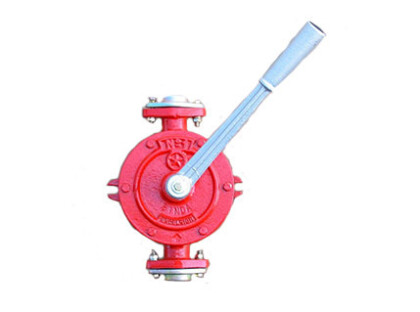

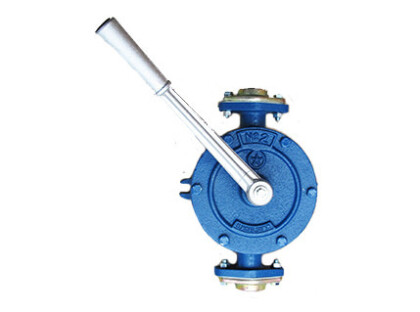

Binda Excelsior G Semi-Rotary Hand Pump
Fuel Transfer Pump & Lubricant Transfer Pump
Key Specifications | |
---|---|
Max Flow Rate | 105lpm |
Max Head | 25M |
Max Temperature | 60°C |
Max Viscosity | 200 cP |
Solids | 0mm |
Size | ½” to 2” |
The Binda Excelsior ‘G’ B Semi-Rotary Hand Pump is a double acting and self priming manual pump. The applications in which these hand pumps are commonly utilised are industrial and marine motors, marine and shipyard industries, transport, oil suppliers and filling stations, generating sets, military equipment and other industries. They can achieve a flow rate up to 6.3m³/hr and can weigh up to 17Kg. Depending upon the version purchased, seals may either be nitrile rubber or Viton.

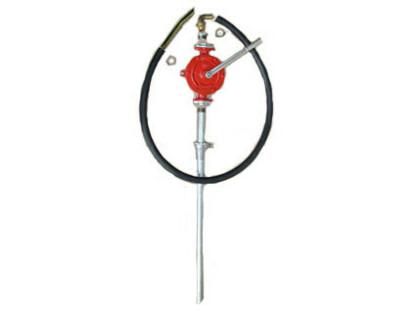

- Also available is the G.P Excelsior pumping unit with hand pump, bung adapter, outlet elbow, rigid suction tube, anti-drip spout and flexible delivery hose.
- Also available is the G.P Distributer pumping unit with hand pump, bung adapter, rigid suction tube, mechanical flow metre and manually operated trigger nozzle.
- The G.P Excelsior and G.P Distributer are also suitable for use in garages, on building works and on agricultural applications.
- Nitrile rubber or viton seals
MODEL | CAST-IRON BODY & COVER / BRONZE INTERNAL PARTS | FPM (VITON) SEALS | NITRILE RUBBER SEALS | WOODEN HANDLE |
E0 | X | X | ||
E1 | X | X | ||
E2 | X | X | ||
E3 | X | X | ||
E4 | X | X | X | |
E5 | X | X | X | |
E7 | X | X | X |
