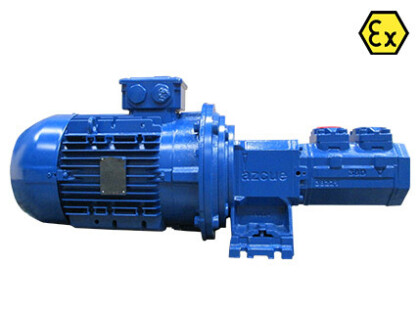

Azcue BT-HM ATEX Spacer Coupled Triple Screw Pump

The Azcue BT-HM ATEX Spacer Coupled Triple Screw Pump is the most commonly specified screw pump in the Azcue range thanks to its robust construction and higher pressure capabilities than the BT-MB whilst still being cost effective. As a positive displacement pump, screw pumps are able to handle lubricating fluids under fluctuating flow rates, pressures and viscosities without losing efficiency. The Azcue BT-HM is therefore ideal for the transfer of fuels and lubrication oils under a range of performance requirements, as well as for hazardous locations thanks to its ATEX approval.

These self priming screw pumps have a spacer coupling for maintenance of the pump without having to remove the motor first and an additional ball bearing between the pump and motor to share the strain of operation, making it ideal for more heavy duty, continuous use. The nature of the screw pump design means it can be used where suction capabilities are difficult such as pumping over long distances or where the pump is located above the fluid

This self priming triple screw pump is horizontal and compact in size for installations with limited space and has a top mounted suction and discharge. These Azcue pumps can be supplied upon request with a magnetic coupling, which eliminates the issue of a mechanical seal leaking and therefore increases service life for vital applications.

Features of the Azcue BT Series Screw Pump:

• Self priming screw pump
• ATEX motor
• Pump manufactured in Spain
• Marine type approved by all classification societies
• Spacer coupling allowing easier maintenance
• Additional bearings in pump head to share the strain of operation
• Top mounted suction and discharge
• Compact horizontal design ideal for space saving installations
• Mechanical seal as standard - magnetic coupling on request
• Available with pressure relief valve
• Smaller footprint than an equivalent performing gear pump
• Low NPSH
• Suitable for lube and fuel oils 2-1500cSt
• 230v, three phase 50Hz/60Hz motors available. IP55 as standard

The BT-HM Spacer Coupled Screw Pump is manufactured by Azcue Pumps. As the official UK Agent of Azcue Pumps, Castle Pumps are a leading Bombas Azcue supplier in the UK with unrivalled technical knowledge. Azcue Pumps are a European manufacturer with over 100 years’ experience in type approved pumps for marine and offshore applications. Today their pumps are installed in more than 10,000 vessel builds. Whilst originally developed for the marine market, Azcue Pumps’ reliability in applications that depend upon the safety and operation of a ship saw them become a desirable product in industrial applications involving water, fuels and lubricants.

One of the key benefits of the BT-HM triple screw pump like the other models in the Azcue range, is that is benefits from interchangeable parts for reduced on board stockholding. We guarantee supply of spares for 15 years from model discontinuation for long term pump servicing, saving the user from having to prematurely replace a pump that just needs maintenance.

Azcue BT-HM pump are cast, machined and assembled at their foundry in Spain. Each pump is manufactured to order and designed to fit your process, resulting in greater efficiency and lower overall lifetime cost in terms of wear and energy consumption. Before leaving the factory, pumps are individually tested to confirm performance meets the requirements set out in your enquiry.

The viscosity of lubricating fluids such as fuels and oils can change with a change in the temperature, unlike fluids such as water. Whereas a centrifugal pump’s performance is affected by fluctuations in the viscosity of the fluid, screw pumps operate just as efficiently. For that reason, the BT-HM triple screw pump is ideal for the following applications:

The Azcue BT-HM Horizontal Self Priming Triple Screw Pump is available with the following material options:
