How does a mag drive pump work?

The drive magnet is attached to the shaft operated by the motor. As the motor turns on, it spins the drive magnet which in turn spins the magnet attached to the impeller. The rotation of the impeller produces the power that drives the liquid through the pump.

Where are magnetically coupled pumps used?

Due to their seal-less design meaning they are not prone to leaks, magnetic drive pumps are very popular for the pumping of flammable, toxic and hazardous chemicals, acids and other potentially dangerous fluids that do not contain abrasives.

Can a magnetic drive pump handle solids?

No! The presence of solids can stick to the magnets and interfere with the operation of the pump.

Can a mag drive pump lose its magnetism?

Under extremely high temperatures or excessive torque the magnets may decouple meaning that the pump shaft can slip causing stoppages and inefficiencies.

Need help choosing the right pump or technical advice? Call the team on 01773 533 283.

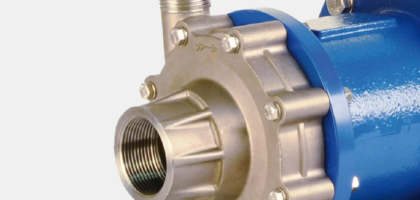

Centrifugal Magnetic Drive Pump

Need help specifying the right mag drive pump? Contact our pump experts today!

Enquire now Call us 01773 533 283

Eliminate Leaks With Our Magnetically Coupled Centrifgual Pumps

Are you sick of the mechanical seals on your pump wearing and causing leaks? Magnetic drive pumps may be your answer! The key design feature of magnetic drive centrifugal pumps is that they do not have a mechanical seal, and instead use magnets to couple the pump head to the motor. This eliminates the chances of leakages caused by the mechanical seal wearing over time, making it a cleaner solution, ideal for pumping chemicals and aggressive fluids that can be potentially dangerous if leaked. Mag drive pumps are also ideal for applications where fluids may crystallise if exposed to the air. We offer a range of magnetic drive pumps designed for long service life in hazardous industrial process and flammable environments. If you have an application that you think would benefit from a magnetically coupled centrifugal pump over a mechanical seal solution, then contact our pump experts for advice selecting the mag drive pump for your application.

5 products

Gemmecotti HTM Metallic Centrifugal Magnetic Drive Pump

Max Flow Rate: 533lpm
Max Head: 24M
Max Temperature: 160°C
Maximum Viscosity: 200 cP
Solids: 0mm
Size: 3/4” to 2 1/2”

Gemmecotti HTM Centrifugal Magnetic Drive Pump

Max Flow Rate: 2166lpm
Max Head: 48M
Max Temperature: 90°C
Max Viscosity: 200 cP
Solids: 0mm
Inlet/Outlet Sizes: 1/2” to 4”

Gemmecotti HCM Centrifugal Magnetic Drive Pump

Max Flow Rate: 2166lpm
Max Head: 48M
Max Temperature: 90°C
Max Viscosity: 200 cP
Solids: 0mm
Size: 1” to 4”

Gemmecotti H-IBC Portable Centrifugal Magnetic Drive Pump

Max Flow Rate: 216lpm
Max Head: 14M
Max Temperature: 90°C
Max Viscosity: 200 cP
Solids: 0mm

Debem DM Centrifugal Magnetic Drive Pump

Max Flow Rate: 583lpm
Max Head: 25M
Max Temperature: 95°C
Max Viscosity: 150cP
Solids: 0mm
Outlet Sizes: 1" to 2"

FAQs

Rather than having a mechanical seal to prevent liquid escaping from between the motor and pump shaft, magnetically coupled pumps use two magnets. The absence of mechanical seals that are prone to wear reduce the chance of leaking and maintenance.
