Barrel Pumps

Need help specifying the right drum pump? Contact our pump experts today!

Enquire now Call us 01773 533 283

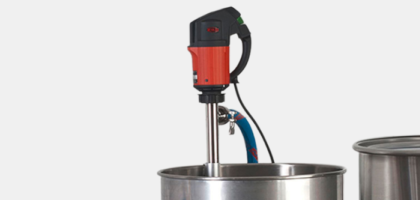

Maximise Your Container Emptying With Our Electric Drum Pumps

Do you have a process that involves the emptying of containers that you wish to upscale? Or perhaps you're looking to reduce waste? Our electric drum pump range have improved the productivity of many manufacturing applications and yours could be next! Suitable for fuel, chemicals, fats, resins, paints, and food products, our barrel pumps can handle low and high viscosity fluids, shear sensitive mediums and those with solid content. The beauty of the drum pump design is that they are easy to install, lightweight enough to be easily moved between drums and IBCs and do not require additional installation space. With models being able to empty 99.98% of the fluid to prevent expensive product waste and others being used to mix as well as transfer, your requirements are covered. If this sounds like what you need, our technical sales will provide product selection advice to get you the right electric drum pump for your process.

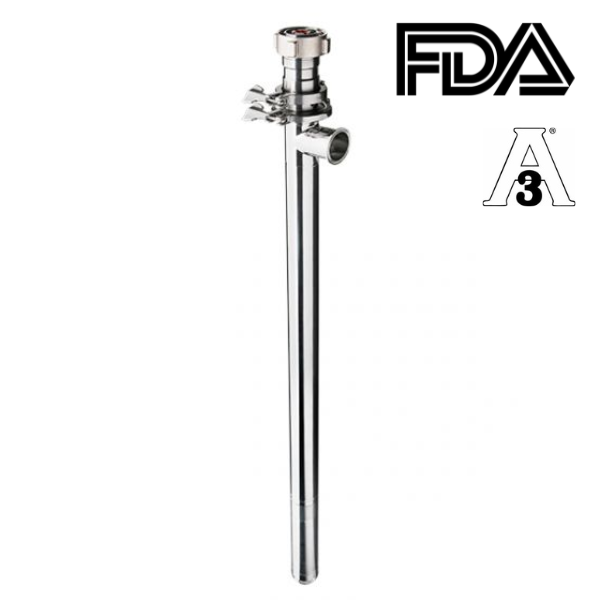

Food Grade Barrel Pumps

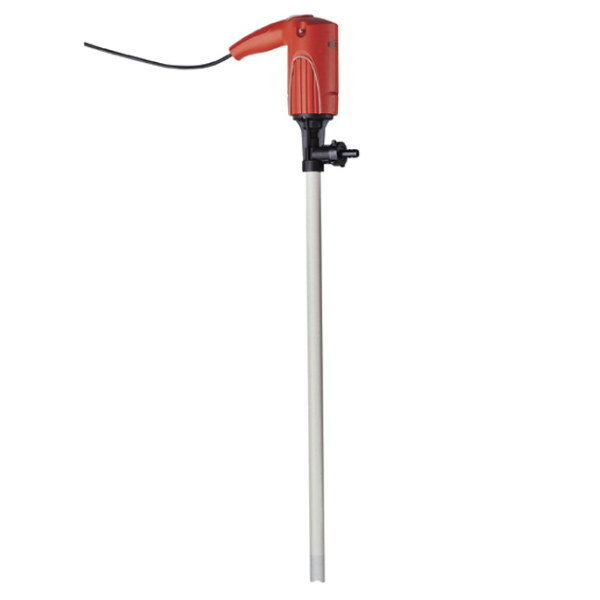

Chemical Barrel Pumps

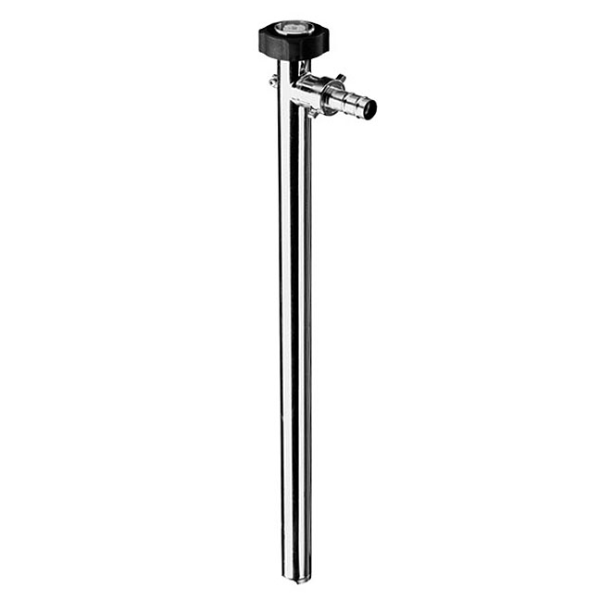

Oil Barrel Pumps

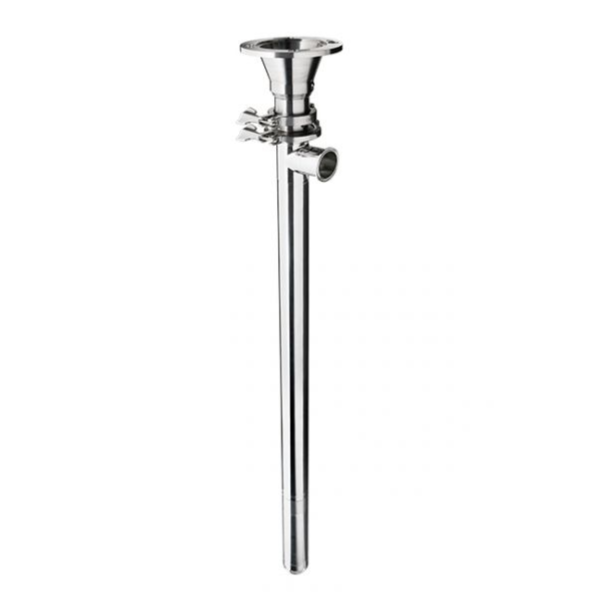

High Viscosity Barrel Pumps

products

Flux F430 Barrel Pump
  • Max Flow Rate: 240lpm
  • Max Head: 30M
  • Max Temperature: 120°C
  • Max Viscosity: 1200 cP
  • Solids: 2mm
  • Sizes: 1" to 1 1/4"

FAQs

Put most simply, a barrel pump, is a pump connected to an immersion tube that sits within the drum with its motor located outside of the container. The pump draws up the fluid through its immersion tube and is then dispensed via a hose or pipe that is connected to its outlet.

The general rule of thumb is that for low-medium duty applications where viscosity is <250cP the F300 is sufficient. For heavy duty applications, flammable liquids and viscosities of <1200cP choose the F400. For shear sensitive fluids or viscosities that exceed 1200cP then the Viscopower is required. Upon disclosure of your application, we can confirm the best solution.

If you have a 1000 litre IBC you will require a 1200mm tube, a 205 litre drum requires a 1000mm and if you have a smaller container 700mm and shorter tubes are available. For larger containers we can offer longer tube sets on specification

If your fluid is prone to crystallisation, then you can use the F310 or F430 models as the pump bearings are protected from wear.

The F425 model is capable of emptying 99.98% of a container's contents. This drum pump is generally selected when the liquid is particularly valuable to minimise waste.

The F426 model is capable of both mixing and pumping the liquid within the container, which is a lower cost solution when compared to a separate mixer and pump.

For liquids with a flashpoint below 50°C, we offer our Stainless Steel F400 models and Viscopower series with ATEX approved motors or Viscoflux Lite EX.

Our range includes both FDA and 3A approved hygienic models. When the viscosity is >1200cP we offer the sanitary Viscopower F570 and F580 models and the Viscoflux Mobile. If <1200cP we typically select the F427, or the F430 food grade version when pumping alcohols or foodstuff with solids.

If you are pumping one liquid or very similar liquids, you can use the F314 or F424 seal-less models, if you are pumping multiple diferent liquids or where cross contamination is not desirable use the F310 or F430 drum pumps.
