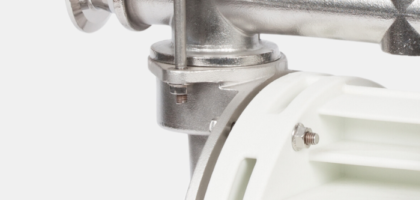

Food Grade AODD Pumps

Need help specifying the right AODD pump? Contact our pump experts today!

Enquire now Call us 01773 533 283

Minimise Process Downtime With Our Food Grade Diaphragm Pumps

Looking for a "Fit and Forget" pump solution for your food process? Our range of food grade AODD pumps have no seals to wear leak, can dry run without damage, have patented stall protection to limit downtime and worker intervention when pressure imbalances occur, and are built with 50% fewer wearing parts compared to alternatives for low cost maintenance. So, if you feel it's time to leave your engineers to do more value-adding tasks than running a pump, AODD pumps are the perfect solution for you! With models approved to FDA and 3A and their ability to handle ow and high viscosity fluids, including those with solid content, Castle Pumps will have a food processing pump compatible with your application requirements whether it is for pumping edible oils, fruit juice concentrate or soup. If you have air on site and this sounds like a solution for you, contact our pump experts for your food grade diaphragm pump quotation.

products

FAQs

The pump is made up of two chambers. As the air forces the diaphragm to move in to the one chamber it forces the fluid inside into the outlet, whilst the other chamber fills up with fluid drawn from the inlet. As the diaphragm moves back into the opposite chamber, the fluid now in that chamber is forced out and the other chamber begins to fill up.

Yes - The Debem Food Boxer is constructed of food grade 316 Stainless Steel and PTFE, and the Saniboxer is 3A approved with 360 degree quick emptying system for CIP. The standard Boxer models however are reserved for non-food applications.

Ensuring compatibility with the fluid being pumped is a vital part of AODD pump specification to avoid swelling, erosion and even melting of the casing, diaphragm and balls. Our AODDs are available in PP, Aluminium or Stainless Steel and diaphragms in PTFE, EPDM, NBR, Hytrel and Santoprene. Upon disclosure of the fluid you are handling we will establish the best solution.

Thanks to the absence of a mechanical seal that needs cooling and lubricating, AODDs are able to run dry or against a closed discharge indefinitely without causing damage to the pump.

AODD pumps are very versatile in their ability to handle aggressive fluids, solids and viscous liquids, and their seal-less design meaning less leaks makes them ideal for hazardous fluids. They are however limited to the fact that they require a compressed air supply to be on site to operate the pump.

There are four common installation types. 1. Above the fluid as it is self priming. 2. Drum/tank mounted 3. Immersed (with an exhaustn tube vented to the atmoshpere) 4. Below the fluid with flooded suction

Yes! Whereas with an electric motor you would fit a variable speed drive, with an AODD you can simply adjust the air inlet pressure to control the flow you receive the other end.

Yes, air operated diaphragm pumps have excellent suction capabilities without need for a manual priming device.

Yes. Thanks to the absence of any close fitting or rotating parts, AODD pumps can handle solid content in fluids.
