Beer Transfer at Brewery - Hygienic Flexible Impeller Pump

Enquiry

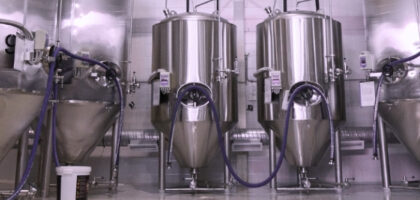

Castle Pumps received an enquiry from a brewery customer based in Scotland looking for a hygienic pumping solution for a beer transfer application. The pump was being used to transfer large volumes of beer throughout the factory and therefore needed to be portable as it would be moved around the brewery rather than installed in one fixed position.

Due to the product being for human consumption, the solution of course needed to be food grade and easy to clean. The other key consideration with pumps for brewing is that they must operate with low shear to prevent frothing and the taste of the product being affected.

Solution

Equipment Supplied

Model: Liverani EP Midex Flexible Impeller Pump

• Application: Portable Beer Transfer
• Flow at 24m head: 1920 l/hr
• Pressure: 6m
• Pump Casing: SS 316
• Impeller: EPDM Food Grade
• Seal: EPDM Food Grade
• Tri-Clamp 1 1/4" Connections
• Voltage: 1 Phase 230v, 50Hz
• Motor: 0.75 Kw running at 1400 RPM

In order to meet the sanitary conditions of the application, we supplied a flexible impeller pump with a food grade impeller, casing and mechanical seal. We also swapped out the standard BSP connections for tri-clamp connections as this meets the ISO 2852 standard for couplings within the food industry, as they have minimal areas for bacteria to congregate. Another huge benefit of flexible impeller pumps for beer production is its low shear operation which prevents frothing of the beer and the taste from being affected.

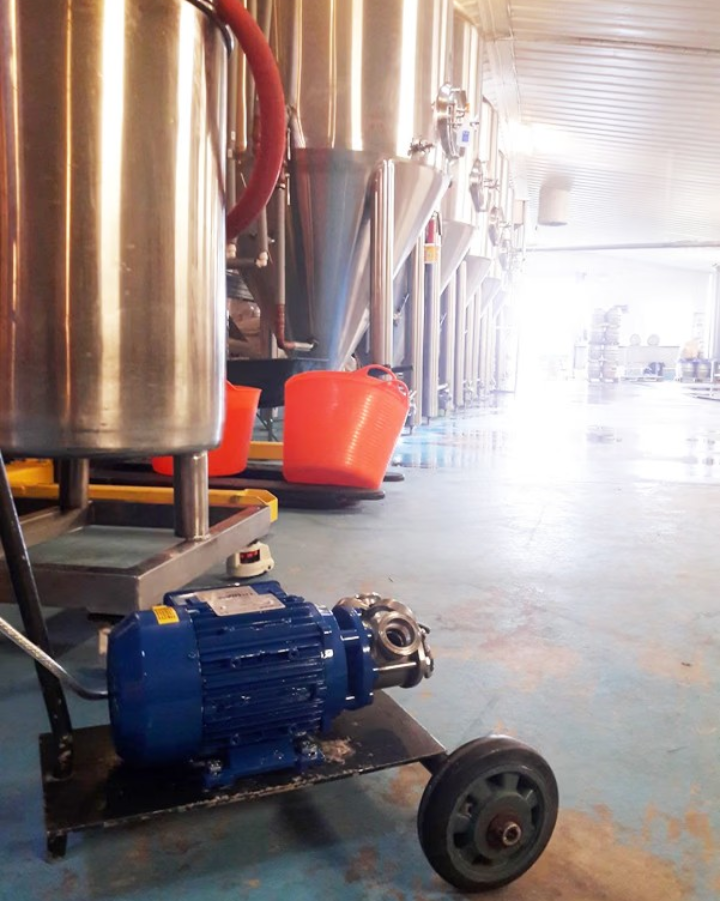

As this food grade pump is reversible, it allows the user to quickly clean the pump between uses by running a cleaning solution through it as well as ensuring that when moved between tanks, any excess beer can be removed from the hose to prevent leaking. Thanks to its compact, relatively lightweight construction, the flexible impeller pump can easily be mounted on a trolley, which the customer supplied, for moving it to where it is required.

Within two days of the pump being delivered, we received a warmly welcomed sample of beer produced by the customer. They were so pleased with their purchase and wanted to give us a taster of some of the beer that the pump would be helping to produce.
