Diesel Generator Feed – Gear Pumps
Case Study Information
- Customer: Fuel System Manufacturer
- Pump: Yildiz YMD External Modular Gear Pump
- Application: Standby pump for generator
- Industry: Energy & Fuel
Enquiry

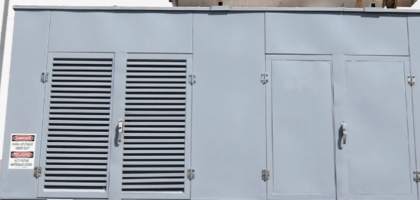

Castle Pumps received an enquiry from a client who specialise in the design, fabrication and installation of fuel systems and their pipework. They were working on a project for which they were fabricating two duplex pump sets that would be feeding rooftop generators from a bulk diesel tank.
Duplex pump systems can be for duty assist, where two pumps contribute to the total output, or duty standby, where one pump acts as a back up in the event of a failure with the first. This particular application was the latter to limit any risk of the generator being unable to be fed.
Key challenges:
Reliability due to use for emergency power
ATEX approval for high pressure fuel pumping
Solution
Equipment Supplied:

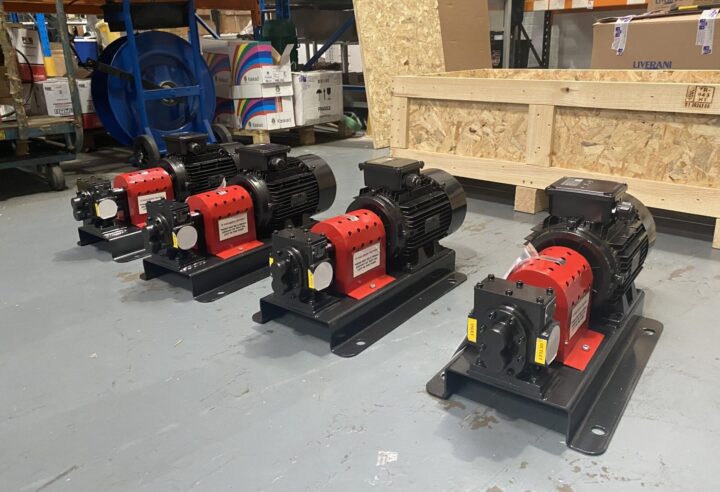

Model: 4 x YMDY1 Modular Gear Pump
- Flow Rate: 40lpm
- Pressure: 9.2 bar
- Fluid: Diesel
- Orientation: Horizontal
- Voltage: 400v, Three Phase
- Material: Cast Iron
- Suction/Discharge: 1"
- Certifications: ATEX
- Drive: Long coupled motor
- Mounted: Base Plate
Due to be engineering based, the customer was clear on their flow and pressure requirements, which is always a great start when we need specify a pump model. This led us down the route of an ATEX approved YMD external gear pump.
Gear pumps are a proven technology, along with screw pumps, when it comes to the handling of clean fuels such as diesel. We typically are led by the rule of thumb that for marine fuel applications, we opt for a screw pump, whereas for industrial fuel transfer pump applications gear pumps can be a more cost effective solution.

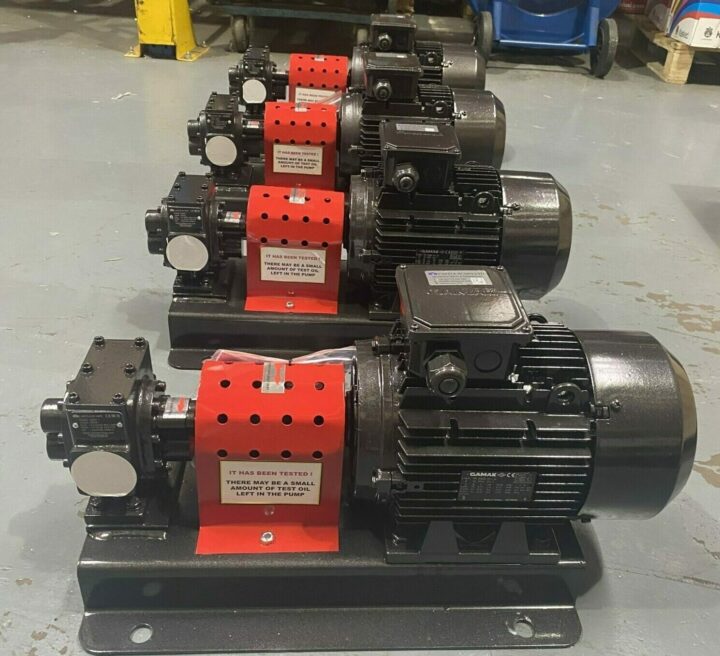

With reliability a huge factor, we specified these pumps long coupled, meaning the pump head and motor are on their own shafts and that separate bearings share the strain of operation. As they were being used for a duplex pump system, we supplied these gear pumps mounted on a base plate to provide a stable installation, minimized vibrations and limited misalignment.
When it comes to the pumping of fuels, there isn’t a one size fits all fuel transfer pump solution.
