Case Study Information

Customer: Aggregates company
Pump: Debem Boxer 100 AODD Pump
Application: Create resin bound aggregates
Industry: Chemical & Process

Enquiry

Castle Pumps received an enquiry from an aggregates company who produce a wide range of aggregates for landscaping, road surfacing and construction. They had already purchased some AODD pumps from us for one of their sites, and after being impressed with their performance were now back with an enquiry for similar pumps for a different site.

They were building a new process for pumping castor oil that is used as an adhesive to create resin bound aggregates. The process required several pumps as they needed to feed the ambient castor oil to a heating tank, and then pump the hotter castor oil from the heating tank to where it is being used.

Key challenges:

Wanted to use air rather than electric motor

Varying viscosities of castor oil

Specific duties required

Solution

Equipment Supplied

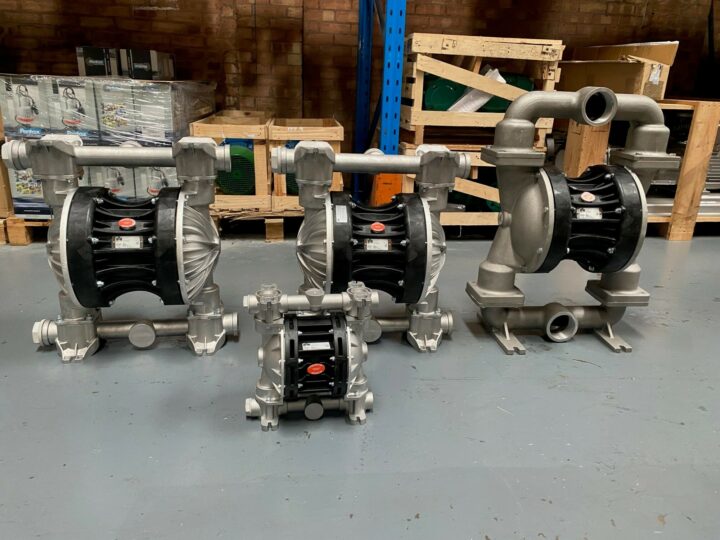

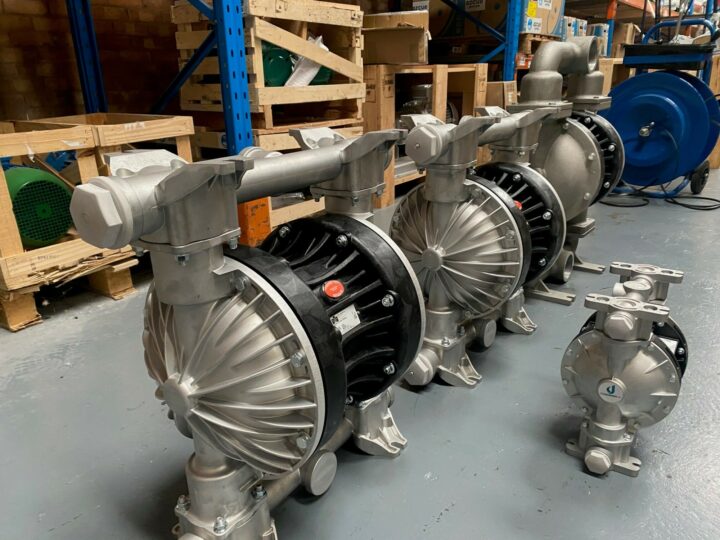

Models: Debem Boxer 100 AODD Pump, 1x Boxer 503 and 2 x Boxer 502

Fluid: Castor oil
Viscosity: Differing depending upon part of the process
Body: Aluminium
Diaphragm: Hytrel & PTFE
Certifications: ATEX Zone 2

For air operated pumps, which was the request of the customer in this instance, Castle Pumps specify the Debem Boxer range of AODDs so we immediately began looking at our options from this range.

When it comes to oils, adhesives and other lubricating fluids, viscosity changes with temperature. Therefore, one of the biggest considerations when selecting which models of air operated diaphragm pumps to use, was achieving the same flow rate requirements at the differing viscosities.

For the pump feeding the colder castor oil to the heating tank, a larger pump (Boxer 503) was needed to achieve the flow rate required, whereas the smaller Boxer 100 was sufficient for transferring the heated castor oil from the heating tank to where it is being used.

An additional benefit of the AODD pump design for this resin pump application include their ability to dry run without damage if the container the castor oil is being pumped from becomes empty. Debem pumps in particular also benefit from long life diaphragms designed for more than 50 million cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models (30 vs a typical 72).

We supplied these air operated diaphragm pumps complete with air regulators allowing the customer to easily adjust the pump to achieve their flow rate requirements.
